Custom SKD11 Cylindrical Dowel Pin One End Internal Screw Type For Testing Equipment

Product Categories
JESENTECH GROUP CORPORATION
Contact Now

Custom SKD11 Cylindrical Dowel Pin One End Internal Screw Type For Testing Equipment

  • 1
  • 2
  • 3

Brand Name : JESENTECH

Model Number : Custom service

Certification : IATF16949:2016

Place of Origin : CHINA

MOQ : 1-5 pieces

Price : Negotiated price

Payment Terms : T/T, L/C, Western Union, MoneyGram,Paypal

Supply Ability : 2800000 pieces/Month

Delivery Time : 3-7days

Packaging Details : General export packaging(PVC Bags+Shockproof cushion+Carton Box+Wood pallet)

Material : SUS316F / SUS304 / Stainless Steel, SKD11 etc.

Hardness : 35~40HRC or 55HRC~Or meet your requirements

MOQ : NONE

Service : Customized

Tolerance : ±0.002mm

Application : automation equipment

Lead Time : 3-5days

Size : According to customer's requirements

Main processing equipment : Automatic Lathe, CNC Machine and BNC machine

Certificate : IATF16949:2016 & ROHS

Contact Now

Professional customization of SKD11 One end internal screw type cylindrical pin for Testing equipment

Introduction of the Pin:

In machinery, pins are mainly used for assembly positioning, and can also be used as connections for over-loading shear connections in relaxation-grade safety devices. There are many types of pin, such as cylindrical pin, cone pin, perforated pin, open pin and safety pin, etc. Its basic form is cylindrical pin and cone pin, which should be selected according to pin type and work requirement.

Introduction to the types of Pin:

Pins can be used to position, transfer power and torque, and to be used as cut-off protectors in safety devices. There are many kinds of pin, such as cone pin, inner thread cone pin, cylinder pin, inner thread pin, open end cone pin, thread pin, hole pin, rounder pin and so on. Each kind of pin is of different specifications. The most common pin can be divided into cylindrical pin and round pin.

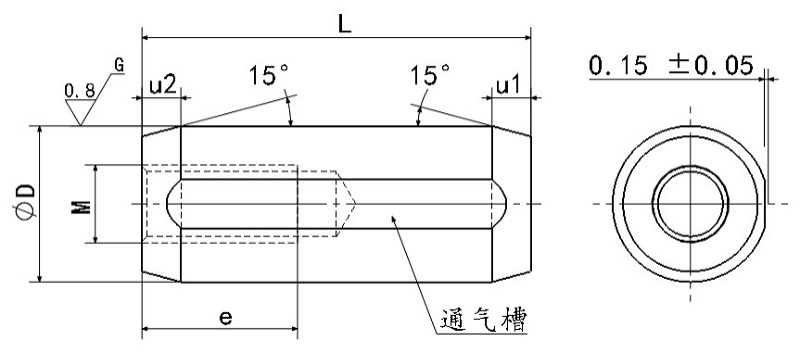

TYPE Dp6 Dm6 u1 L
Designated unit:1mm		 u2 M
Coarse thread		 e
Model D
AVMJR AVPJR 5 +0.02
+0.012		 +0.012
+0.004		 1.5 10,15,20,25,30 0.5 3X0.5 6
6 2 10,15,20,25,30,35,40,50 4X0.7 8
8 +0.024
+0.015		 +0.015
+0.006		 15,20,25,30,35,40,45,50,60,70,80 5X0.8 10
10 2.5 15,20,25,30,35,40,45,50,60,70,80 6X1.0
12 +0.029
+0.018		 +0.018
+0.007		 20,30,40,50,60,70,80 1
13 40,50,60,70,80 8X1.25 15
16 +0.035
+0.022		 +0.021
+0.008		 3 40,50,60,70,80
20 50,60,70,80 10X1.5 18

Custom SKD11 Cylindrical Dowel Pin One End Internal Screw Type For Testing Equipment

Cylindrical pin:

Cylindrical pin is a positioning pin, the main advantage is that the force is better. Used to fix the relative position between parts, it plays an important auxiliary role in assembling and assembling. Cylindrical pin requires high tolerance accuracy, otherwise fit bad, pin easy to fall out.

Custom SKD11 Cylindrical Dowel Pin One End Internal Screw Type For Testing Equipment
